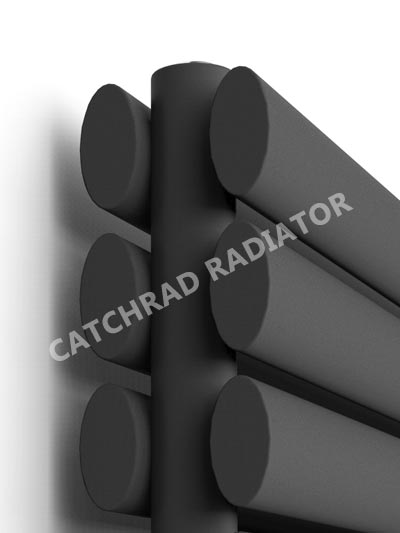

AHD12 Series
| Product Name | Height | Width | Thickness | Plumbing Axes Center to center | Wall to Pipe center | Wall Distance | Tube Quantity |
| mm | mm | mm | mm | mm | mm | ||
| H | W | D | C | - | - | ||
| AHD12-10/800 | 590 | 800 | 78 | 755 | 63 | 103 | 10+10 |
| AHD12-10/1000 | 590 | 1000 | 78 | 955 | 63 | 103 | 10+10 |
| AHD12-10/1200 | 590 | 1200 | 78 | 1155 | 63 | 103 | 10+10 |
| AHD12-10/1400 | 590 | 1400 | 78 | 1355 | 63 | 103 | 10+10 |
| AHD12-10/1600 | 590 | 1600 | 78 | 1555 | 63 | 103 | 10+10 |
| AHD12-10/1800 | 590 | 1800 | 78 | 1755 | 63 | 103 | 10+10 |
