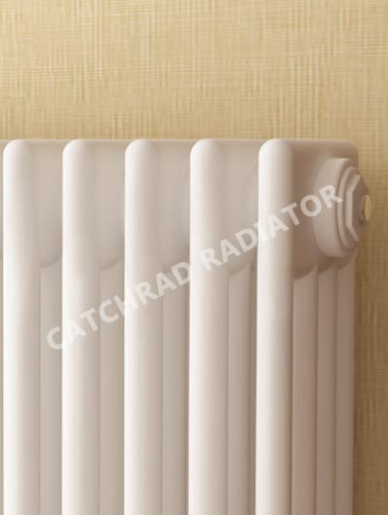

4 Column Radiator

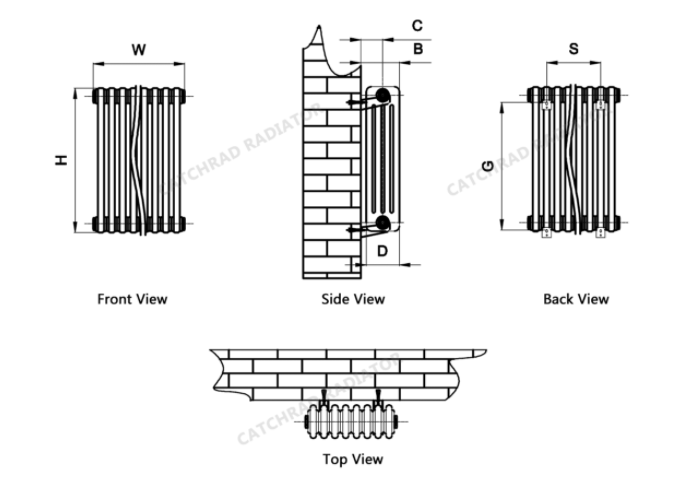

Product Name	Height	Width	Thickness	Plumbing Axes Center to center	Wall to Pipe center	Wall Distance	Tube Quantity
	mm	mm	mm	mm	mm	mm
	H	W	D	C	-	-
DP14-13/600	600	605	140	525	95	160	13
DP14-17/600	600	785	140	525	95	160	17
DP14-22/600	600	1010	140	525	95	160	22
DP14-26/600	600	1190	140	525	95	160	26
DP14-30/600	600	1370	140	525	95	160	30
DP14-22/300	300	1010	140	225	95	160	22
DP14-26/300	300	1190	140	225	95	160	26
DP14-30/300	300	1370	140	225	95	160	30
