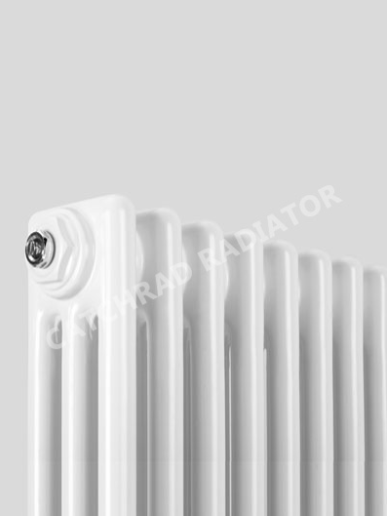

3 Column Radiator
Product Name | Height | Width | Thickness | Plumbing Axes Center to center | Wall to Pipe center | Wall Distance | Tube Quantity |
mm | mm | mm | mm | mm | mm | ||
H | W | D | C | - | - | ||
DP13-4/1500 | 1500 | 200 | 100 | 1425 | 68 | 118 | 4 |
DP13-6/1500 | 1500 | 290 | 100 | 1425 | 68 | 118 | 6 |
DP13-4/1800 | 1800 | 200 | 100 | 1725 | 68 | 118 | 4 |
DP13-6/1800 | 1800 | 290 | 100 | 1725 | 68 | 118 | 6 |
DP13-13/600 | 600 | 605 | 100 | 525 | 68 | 118 | 13 |
DP13-17/600 | 600 | 785 | 100 | 525 | 68 | 118 | 17 |
DP13-22/300 | 300 | 1010 | 100 | 225 | 68 | 118 | 22 |
DP13-26/300 | 300 | 1190 | 100 | 225 | 68 | 118 | 26 |
DP13-30/300 | 300 | 1370 | 100 | 225 | 68 | 118 | 30 |
