MID Series

Product Name	Height	Width	Thickness	Plumbing Axes Center to center	Wall to Pipe center	Wall Distance	Tube Quantity
	mm	mm	mm	mm	mm	mm
	H	W	D	C	-	-

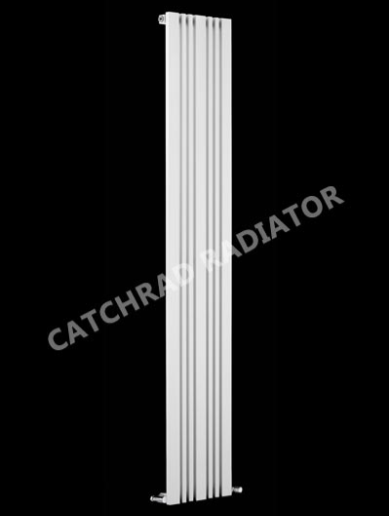

MID11-7/1800	1800	320	54	1755	65	100	7
MID11-10/1800	1800	456	54	1755	65	100	10
MID11-10/550	550	456	54	505	65	100	10

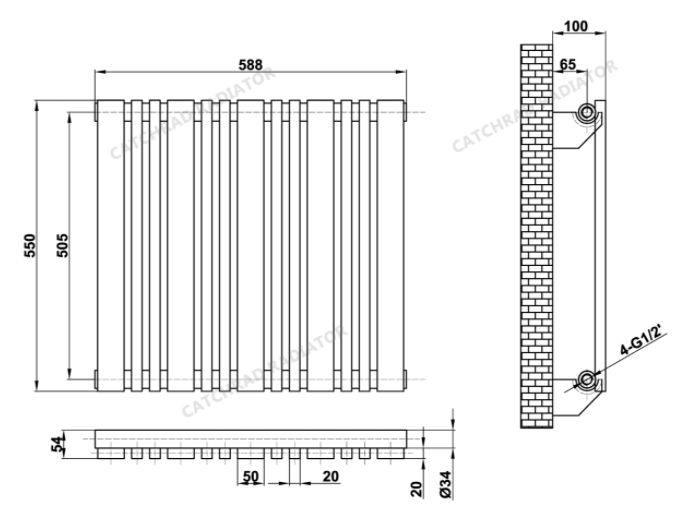

MID11-13/550	550	588	54	505	65	100	13
MID11-19/550	550	852	54	505	65	100	19
MID11-22/550	550	984	54	505	65	100	22
MID11-28/550	550	1284	54	505	65	100	28
