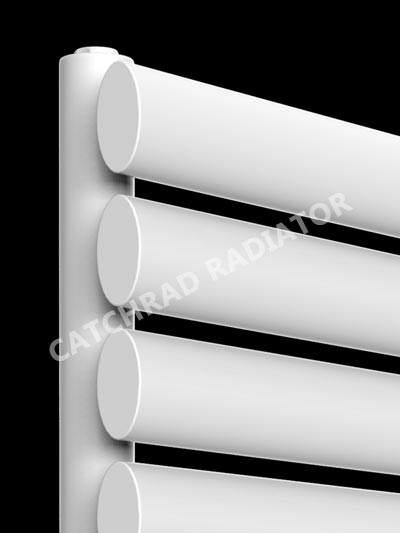

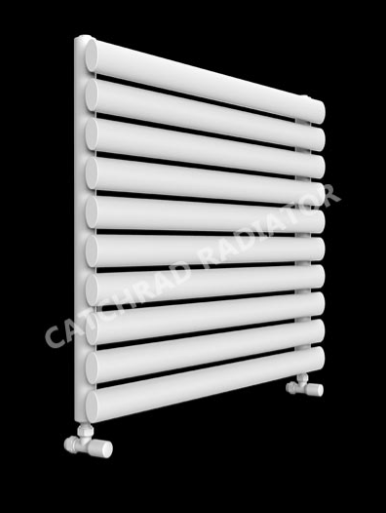

AHD11 Series

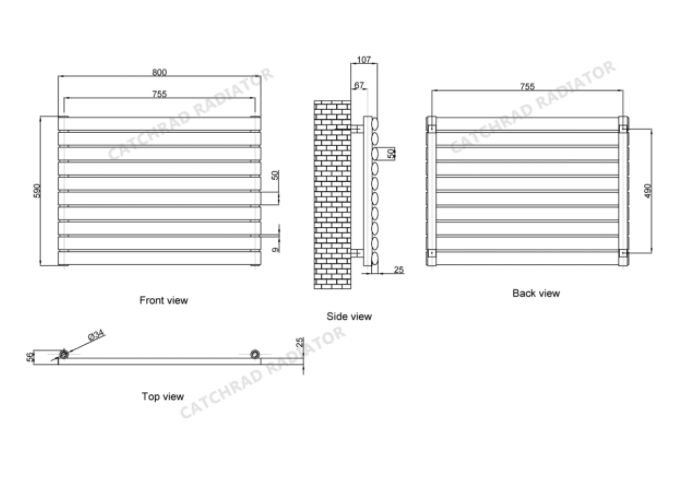

Product Name | Height | Width | Thickness | Plumbing Axes Center to center | Wall to Pipe center | Wall Distance | Tube Quantity |
mm | mm | mm | mm | mm | mm | ||
H | W | D | C | - | - | ||
AHD11-10/800 | 590 | 800 | 56 | 755 | 67 | 107 | 10 |
AHD11-10/1000 | 590 | 1000 | 56 | 955 | 67 | 107 | 10 |
AHD11-10/1200 | 590 | 1200 | 56 | 1155 | 67 | 107 | 10 |
AHD11-10/1400 | 590 | 1400 | 56 | 1355 | 67 | 107 | 10 |
AHD11-10/1600 | 590 | 1600 | 56 | 1555 | 67 | 107 | 10 |
AHD11-10/1800 | 590 | 1800 | 56 | 1755 | 67 | 107 | 10 |
