AD11 Series

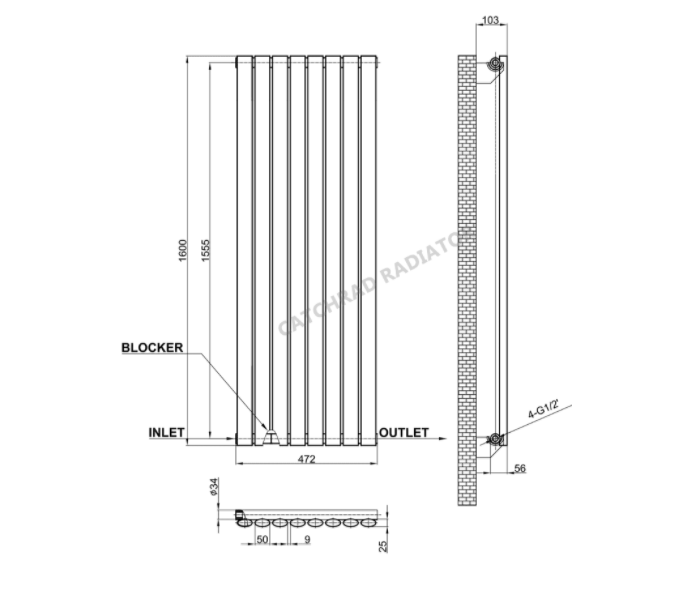

Product Name | Height | Width | Thickness | Plumbing Axes Center to center | Wall to Pipe center | Wall Distance | Tube Quantity |
mm | mm | mm | mm | mm | mm | ||
H | W | D | C | - | - | ||
AD11-4/1600 | 1600 | 236 | 56 | 1555 | 63 | 103 | 4 |
AD11-6/1600 | 1600 | 354 | 56 | 1555 | 63 | 103 | 6 |
AD11-4/1800 | 1800 | 236 | 56 | 1755 | 63 | 103 | 4 |
AD11-6/1800 | 1800 | 354 | 56 | 1755 | 63 | 103 | 6 |
AD11-7/600 | 600 | 413 | 56 | 555 | 63 | 103 | 7 |
AD11-10/600 | 600 | 590 | 56 | 555 | 63 | 103 | 10 |
AD11-13/600 | 600 | 767 | 56 | 555 | 63 | 103 | 13 |
AD11-17/600 | 600 | 1003 | 56 | 555 | 63 | 103 | 17 |
AD11-20/600 | 600 | 1180 | 56 | 555 | 63 | 103 | 20 |
